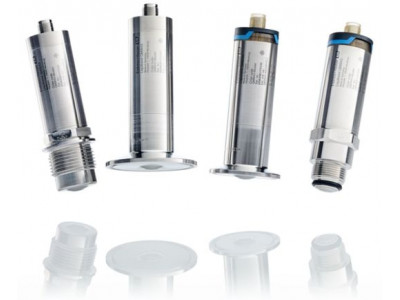

Liquid Analysis Physical Medium Properties

Преимущества

• Reliable, repeatable and accurate measurement of buildup thickness and conductivity regardless of media type
• Conductive as well as capacitive measuring cycles, the device automatically detects the most accurate measuring mode and uses it automatically
• Verification of cleaning status without the need to open the tank
• Compact and flush-mounted stainless-steel sensor offers the perfect insight into the conditions in pipelines or tanks at all critical locations
• Plug and Play - simple commissioning without presettings
• Hygienic safety by Design and material traceability are a matter of course
• Integrated digital communication option via IO-Link

Область применения

• Cleaning optimization, blending homogeneity monitoring and media differentiation of liquids, suspensions, pasty media etc.
• For the use in storage, mixing and process vessels with or without an agitator, pipes and equipment periphery
• Process connections: Threads and hygienic connections
• Sensor design: Flush-mounted, surface roughness Ra<0.76µm
• Temperature: -20 to +100°C (-4 to +212°F), CIP/SIP to 150°C (302°F) for 1 hour
• Certificates and declarations: 3A, FDA, EHEDG and EG1935/2005, EN10204- 3.1
