Intelligent Bluetooth® and/or WirelessHART adapter for all HART field devices
Краткие характеристики FieldPort SWA50
Выход
WirelessHART communication interface Transmission rate:
Nominal 250 kBits/s,
Operating frequency: 2.4 GHz (ISM band),
Transmission range under reference conditions,
Outdoor 250 m, indoor 50 m
Преимущества
- Reliable transmission of the measured process values through the connected FieldPort SWA50 via encrypted Bluetooth® or WirelessHART communication
- Easy to retrofit all 2-wire or 4-wire HART field devices
- Easy connection of all HART field devices to the Netilion Cloud
- Loop-powered adapter, without affecting the process signal
- Easily accessible, wireless, diagnostic information of connected HART field device
Область применения

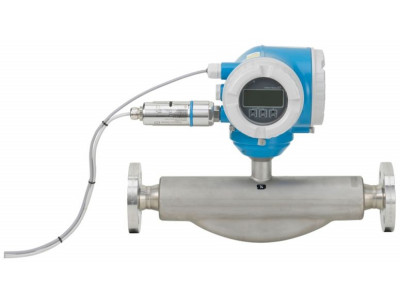

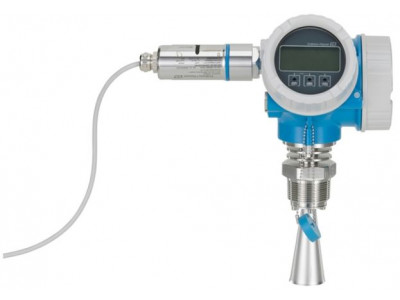

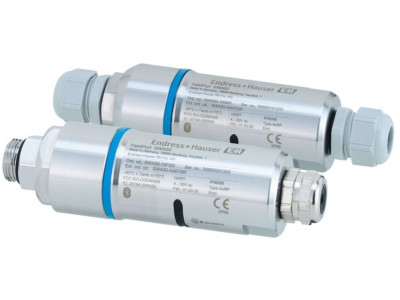

The FieldPort SWA50 converts the HART signal of the connected HART field device to a reliable and encrypted Bluetooth® or WirelessHART signal. The FieldPort can be retrofitted to all 2-wire and 4-wire HART field devices in both hazardous and non-hazardous areas. The robust stainless steel housing allows the FieldPort SWA50 to be installed even in harsh industrial environments.
Характеристики и спецификации
Принцип измерения
WirelessHARTФункция
Intelligent WirelessHART interface module for connection to 4...20 mA/HART devicesСертификаты
Non-hazardous area, ATEX, IEC ExВход
One point-to-point with a HART device,
One point-to-point connection with a 4...20 mA device, or
Up to four HART field devices connected in multidrop mode with a wide range power unitВыход
WirelessHART communication interface Transmission rate:
Nominal 250 kBits/s,
Operating frequency: 2.4 GHz (ISM band),
Transmission range under reference conditions,
Outdoor 250 m, indoor 50 mВнешнее питание/питание по сигнальной цепи
Special long live Lithium Thionylchloride battery pack
24-230V AC/DC external power,
DC power unitГабаритные размеры
W x H x D: 111.5 mm x 189.9 mm x 92.8 mm Dimensions in mm 25.4 mm = 1 "Программное обеспечение (ПО)
Internal software for controlling, powering, and reading from 4…20 mA HART field devicesНастройка
4...20mA HART
Wireless Bluetooth® technologyНапряжение
Special long live Lithium Thionylchloride battery pack
For versions with electronically regulated power supply:
Wide-range power supply: 24 V...230 V AC/DC ± 10%, 50/60 Hz
DC power unit: 8 V...50 V DC ± 10%
In the event of an external power supply failure, wireless communication is maintained for at least one hour by means of an internal supply.
