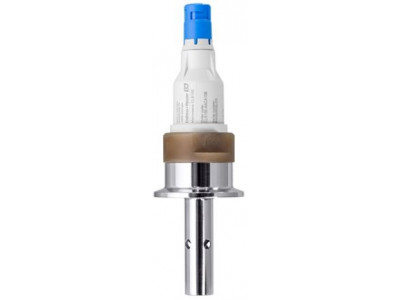

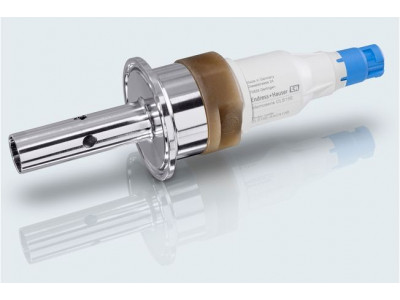

Memosens 2.0 contacting conductivity sensor for standard applications in pure and ultrapure water
Краткие характеристики Memosens CLS15E
Диапазон измерения
k=0,01: 0.04 to 20 µS/cm
k=0,1: 0.10 to 200 µS/cmРабочая температура
Threaded with fixed cable:
-20 to 100 °C (-4 to 212 °F)
Threaded with plug-in head:
-20 to 120 °C (-4 to 248 °F)
Sterilization: max. 140 °C (284 °F) for 30 minutesРабочее давление
13 bar at 20 °C (188 psi at 68 °F) absolute
1 bar at 120 °C (14 psi at 248 °F) absolute
Преимущества
- Designed for low maintenance and a long operating life, the sensor offers best value for money.
- The sensor is sterilizable and autoclavable, allowing for installation in sterile plants.
- Thanks to its electrode geometry, Memosens CLS15E provides reliable and accurate measured values at low conductivities.
- A quality certificate stating the individual cell constant enables perfect adjustment of the measuring point.
- IIoT ready: Memosens 2.0 offers extended storage of calibration and process data, enabling better trend identification and providing a future-proof basis for predictive maintenance and enhanced IIoT services.
- Non-contact inductive signal transmission ensures maximum process safety.
Область применения
Memosens CLS15E measures conductivity in pure and ultrapure water applications for the monitoring and control of:
- Boiler feedwater
- Ion exchangers
- Reverse osmosis
- Cooling water
- Distillation
- Chip cleaning
The digital sensor can be used in power plants for:
- Degassed conductivity
- pH measurement with differential conductivity
With its international explosion protection approvals, such as ATEX and FM, the sensor is suitable for hazardous area use.
Характеристики и спецификации
Принцип измерения
Кондуктивные датчикиПрименение
Measurement in pure and ultrapure water range
Monitoring of ion exchangers
Reverse osmosis
Distillation and chip cleaningХарактеристики
Digital 2-electrode conductivity sensorДиапазон измерения
k=0,01: 0.04 to 20 µS/cm
k=0,1: 0.10 to 200 µS/cmПринцип измерения
Conductive conductivity cell with electropolished stainless steel electrodesКонструкция
2-electrode conductivity cell with coaxially arranged electrodes, electropolishedМатериал
Electrode: stainless steel 1.4435
Electrode shaft: PESГабаритные размеры
Electrode diameter: 16 mm (0.63 ")
Electrode length: appr. 55 mm (2.17 ")Рабочая температура
Threaded with fixed cable:
-20 to 100 °C (-4 to 212 °F)
Threaded with plug-in head:
-20 to 120 °C (-4 to 248 °F)
Sterilization: max. 140 °C (284 °F) for 30 minutesРабочее давление
13 bar at 20 °C (188 psi at 68 °F) absolute
1 bar at 120 °C (14 psi at 248 °F) absoluteДатчик температуры
Pt1000Сертификаты на взрывозащиту
ATEX, NEPSI, CSA, IECEx, INMETRO, EAC ExПодключение
Process: 1/2" and 3/4" NPT, Clamp 1 1/2"
Sensor connection: Inductive, digital connection head with Memosens 2.0 technologyСтепень защиты
IP68Дополнительные сертификаты
Calibration certification of the cell constante and temperature, material certification 3.1
