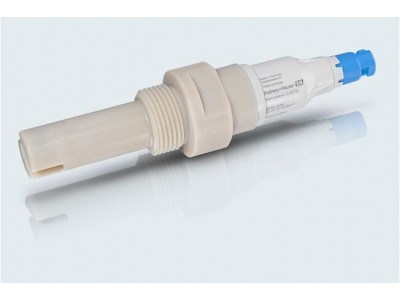

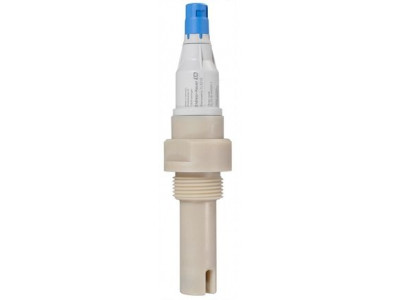

Memosens 2.0 contacting conductivity sensor for surface and drinking water monitoring
Краткие характеристики Memosens CLS21E
Диапазон измерения
k=1: 10 µS/cm to 20 mS/cmРабочая температура
-20 to 135 °C at 3.5 bar abs
(-4 to 275 °F at 50 psi)Рабочее давление
17 bar abs at 20 °C
(246 psi at 68 °F)
Преимущества
- Reliable and accurate measured values at medium conductivities ensure precise monitoring of water quality.
- Robust design for long durability and low maintenance: The sensor is corrosion-free and features high mechanical and chemical stability.
- Quality certificate stating the individual cell constant allows accurate measurement.
- Non-contact inductive signal transmission ensure maximum process and data integrity.
- Memosens 2.0 technology enables the sensor to store more process and calibration data. It lays the basis for IIoT services and predictive maintenance.
Область применения
Memosens CLS21E measures conductivity in all water applications, such as:
- Potable water treatment
- Desalination plants
- Industrial water treatment
- River/lake monitoring
With its international explosion protection approvals, such as ATEX, FM, CSA and NEPSI, the digital sensor is suitable for hazardous area use.
Характеристики и спецификации
Принцип измерения
Кондуктивные датчикиПрименение
Surface water + water
Waste water
Process industry
Media separation
Industrial waterХарактеристики
Digital 2-electrode conductivity sensorДиапазон измерения
k=1: 10 µS/cm to 20 mS/cmПринцип измерения
Conductive conductivity cell with graphite electrodesКонструкция
2-electrode conductivity cell with parallel arranged electrodesМатериал
Sensor shaft: PES
Electrodes: graphiteГабаритные размеры
Diameter: 24 mm (0.94 ")
Length: 61 mm (2.40 ")Рабочая температура
-20 to 135 °C at 3.5 bar abs
(-4 to 275 °F at 50 psi)Рабочее давление
17 bar abs at 20 °C
(246 psi at 68 °F)Датчик температуры
Pt1000Сертификаты на взрывозащиту
ATEX, CSA, NEPSI, EAC Ex, IECEx, INMETROПодключение
Process connection: DN25, DN40, G1, NPT 1"
Sensor connection: Inductive, digital connection head with Memosens 2.0 technologyСтепень защиты
IP68
Endress+Hauser Memosens CLS21E (техническое описание)
