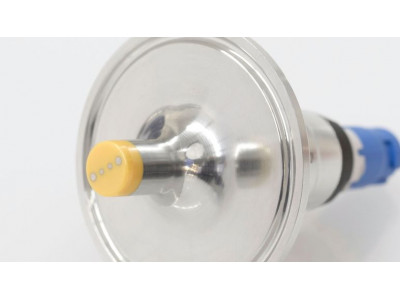

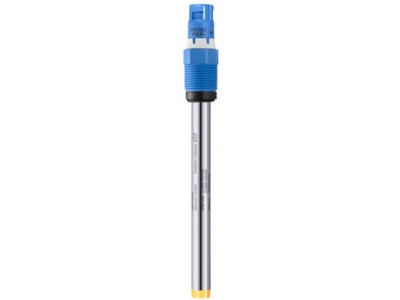

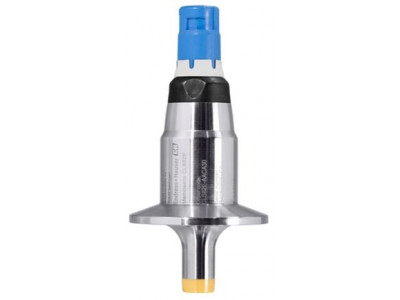

Digital 4-electrode conductivity sensor Memosens CLS82E

Преимущества

• Hygienic design and materials certified and approved by EHEDG, 3-A and FDA ensure compliance with GMP requirements. The sensor is sterilizable and autoclavable.

• Absolute loop safety thanks to Memosens and unique detection of build-up on electrodes.

• The broad measuring range enables monitoring of core processes and final rinse with one sensor, saving costs.

• Its compact design makes the sensor suitable for small pipe diameters and narrow, space-limited installations.

• Quality certificate stating the individual cell constant allows precise adjustment of themeasurement.

• Non-contact, inductive signal transmission ensures high process and data integrity.
• IIoT ready: Memosens 2.0 offers extended storage of calibration and process data, enabling better trend identification and providing a future-proof basis for predictive maintenance and enhanced IIoT services.

Область применения

Memosens CLS82E measures conductivity in applications that need to cover a wide measuring range as in:

• Phase separation
• Downstream processing
• Fermentation
• Chromatography
• Ultrafiltration
• Final rinse in pharma applications

With its international explosion protection approvals, such as ATEX, FM, CSA and NEPSI, the digital sensor is suitable for hazardous area use.

Характеристики и спецификации
