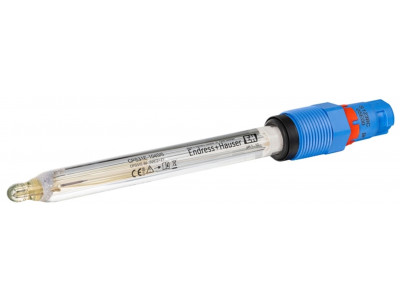

Digital pH sensor Memosens CPS31E

Name: Endress+Hauser Memosens CPS31E
Brand: Endress+Hauser
Price: 0.01 RUB
Availability: OutOfStock

Код Товара:

Memosens CPS31E

Производитель

Endress+Hauser

Стоимость по запросу

Memosens 2.0 glass electrode for application in drinking water and swimming pools

Memosens CPS31E is the expert for pH compensation in disinfection processes. It delivers stable measurement results, ensuring safe swimming pool and drinking water. Thanks to Memosens 2.0digital technology, CPS31E provides the perfect data basis for predictive maintenance, offers easy operation and more process uptime since it can be calibrated in the laboratory and quickly exchanged on site. The sensor resists moisture and its 3 optional junctions make it suitable for minimum conductivity.

Краткие характеристики Memosens CPS31E

Диапазон измерения
pH 1 to 13
Рабочая температура
–15 to 80 °C (5 to 176 °F)
Рабочее давление
0.8 to 4 bar (11.6 to 58 psi) (absolute)

Подробное описание Memosens CPS31E

Преимущества

Reliable: Ceramic junction ensures reliable measurement at low conductivities. For minimum conductivities, 3 junctions are the best choice.
Robust: The optional salt storage provides for extended operating time.
Precise: The sensor shows minimum drift thanks to a very low level of ion depletion in electrolyte.
Memosens 2.0 offers extended storage of calibration and process data. These data are the ideal basis for predictive maintenance and can also be used to develop and provide enhanced IIoT services.
Safe: Non-contact, inductive, digital signal transmission eliminates errors due to moisture.
Cost-efficient: Fast sensor exchange in the field increases process uptime and regeneration extends the sensor lifetime.

Область применения

Drinking water
Swimming pool water
pH compensation for free chlorine and free bromine measurement

Характеристики и спецификации

рН

Принцип измерения
Стеклянный электрод
Применение
• Drinking water
• Swimming pool water
• pH compensation during the measurement of free chlorine
Характеристики
Digital pH electrode for standard applications in drinking
water and swimming pool water
Диапазон измерения
pH 1 to 13
Принцип измерения
Gel filled reference with one or three ceramic junctions with optional salt storage
Конструкция
All shaft lengths with temperature sensor
Материал
Sensor shaft: Glass to suit process
pH membrane: glass Type A
Metal lead Ag/AgCl
Open aperture: Ceramic junction
O-ring: FKM
Process coupling: PPS fiber-glass reinforced
Nameplate: Ceramic metal oxide
Габаритные размеры
Diameter: 12 mm (0.47 ")
Shaft length: 120 mm (4.70 ")
Рабочая температура
–15 to 80 °C (5 to 176 °F)
Рабочее давление
0.8 to 4 bar (11.6 to 58 psi) (absolute)
Датчик температуры
NTC 30k
Сертификаты на взрывозащиту
With ATEX, IECEx, CSA C/US, NEPSI, Japan Ex and INMETRO approvals for use in
hazardous areas Zone 0, Zone 1 and Zone 2.
Подключение
Inductive, contactless connection head with Memosens 2.0 technology
Степень защиты
IP68

Endress+Hauser Memosens CPS31E (техническое описание)

Endress+Hauser

Швейцарская компания Endress+Hauder является одним из крупнейших поставщиков средств измерения в мире. Линейка производимого компанией оборудования влючает в себя расходомеры, уровнемеры, датчики давления и температуры, а также приборы промышленного ... Подробнее...
