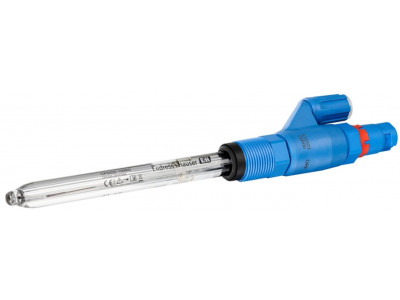

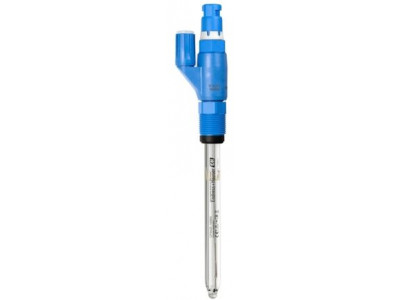

Digital ORP sensor Memosens CPS42E

Name: Endress+Hauser Memosens CPS42E
Brand: Endress+Hauser
Price: 0.01 RUB
Availability: OutOfStock

Код Товара:

Memosens CPS42E

Производитель

Endress+Hauser

Стоимость по запросу

Memosens 2.0 ORP sensor for applications with fast-changing medium compositions or low conductivity

Memosens CPS42E is the high performer for harsh chemical applications, media with low conductivity or considerable organic content. The sensor is designed for fast response especially in applications with fast-changing media.Thanks to Memosens 2.0digital technology, CPS42E combines maximum process integrity with simple operation. It resists moisture and enables lab calibration. It offers extended storage of calibration and process data providing the perfect basis for predictive maintenance.

Краткие характеристики Memosens CPS42E

Диапазон измерения
–1 500 to 1 500 mV
Рабочая температура
–15 to 135 °C (5 to 275 °F)
Рабочее давление
0.8 to 11 bar (11.6 to 159.5 psi) (absolute)

Подробное описание Memosens CPS42E

Преимущества

Memosens 2.0 offers extended storage of calibration and process data, enabling better trend identification and providing a future-proof basis for predictive maintenance and enhanced IIoT services.
Resistant to poisoning due to permanent refilling of KCl bridge electrolyte and separate reference lead
Perfectly suited for quickly changing media: Combination of liquid KCl electrolyte and ceramic junction enables fast response time
Applicable at very low conductivities(> 5 µS/cm) thanks to liquid KCl electrolyte
Suitable for cleaning in place (CIP) and sterilization in place (SIP)
Maximum process safety through non-contact inductive signal transmission
Reduced operating costs due to minimized process downtime and extended sensor lifetime

Область применения

Media with very low conductivities or a considerable amount of organic solvents or alcohols and fast changing media:

Chemical industry
Power plants, e.g. boiler feed water
Life sciences, e.g. water for injection

With ATEX, IECEx, CSA C/US, NEPSI, Japan, INMETRO approvals for use in hazardous areas, zones 0, 1 and 2.

Характеристики и спецификации

ОВП

Принцип измерения
ОВП электрод
Применение
Media with very low conductivity or a high proportion of organic solvents or alcohol:
• Chemical industry
• Organic chemicals
• Power stations
• Laboratory measurements
Характеристики
Digital ORP electrode for process engineering with ceramic junction
and KCl liquid electrolyte
Диапазон измерения
–1 500 to 1 500 mV
Принцип измерения
Liquid-KCl filling and ceramic junction
Конструкция
All shaft lengths with temperature sensor
Материал
Sensor shaft: Glass to suit process
ORP measuring element: Platinum
Metal lead: Ag/AgCl
Open aperture: Ceramic junction, zirconium dioxide
O-ring: FKM
Process coupling: PPS fiber-glass reinforced
Nameplate: Ceramic metal oxide
Габаритные размеры
Diameter: 12 mm (0.47 ")
Shaft length: 120, 225, 360 and 425 mm
(4.72, 8.86, 14.17 and 16.73 ")
Рабочая температура
–15 to 135 °C (5 to 275 °F)
Рабочее давление
0.8 to 11 bar (11.6 to 159.5 psi) (absolute)
Датчик температуры
NTC 30k
Сертификаты на взрывозащиту
With ATEX, IECEx, CSA C/US, NEPSI, Japan Ex and INMETRO approvals for use in
hazardous areas Zone 0, Zone 1 and Zone 2.
Подключение
Inductive, contactless connection head with Memosens 2.0 technology
Степень защиты
IP68
Дополнительные сертификаты
Дополнительные сертификаты

Endress+Hauser Memosens CPS42E (техническое описание)
