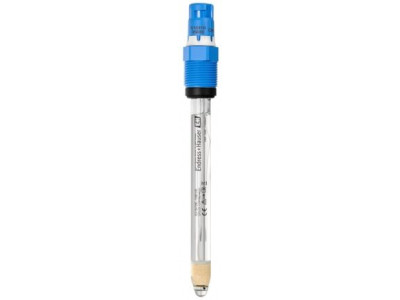

Memosens 2.0 ORP electrode for chemical processes and poisoning media
Краткие характеристики Memosens CPS72E
Диапазон измерения
–1 500 to 1 500 mVРабочая температура
0 to 140 °C (32 to 284 °F)Рабочее давление
0.8 to 14 bar (11.6 to 203 psi) (absolute)
Преимущества
- Memosens 2.0 offers extended storage of calibration and process data, enabling better trend identification and providing a future-proof basis for predictive maintenance and enhanced IIoT services.
- The sensor resists strong acids and bases and high organic loads.
- Its unique ion trap prevents poisoning of the junction and reference, ensuring a long sensor lifetime.
- Non-contact, inductive signal transmission maximizes process safety.
- Reduced process downtime and extended sensor lifetime minimize operating costs.
Область применения
Processes in chemical industry and monitoring of processes with:
- Quickly changing ORP values
- High proportion of electrode poisons such as H2S
With ATEX, IECEx, CSA C/US, NEPSI, Japan, INMETRO approvals for use in hazardous areas, zones 0, 1 and 2.
Характеристики и спецификации
Принцип измерения
ОВП электродПрименение
Process technology and monitoring of processes with:
• Rapidly changing ORP values
• High proportion of electrode poisons, such as H2SХарактеристики
Digital ORP electrode for chemical process with an ion trap for poison-resistant referenceДиапазон измерения
–1 500 to 1 500 mVПринцип измерения
Gel compact electrode with ceramic junctionКонструкция
All shaft lengths with temperature sensor
Advanced gel technology
Материал
Sensor shaft: Glass to suit process
ORP measuring element: Platinum
Metal lead: Ag/AgCl
Open aperture: Ceramic junction, zirconium dioxide
O-ring: FKM
Process coupling: PPS fiber-glass reinforced
Nameplate: Ceramic metal oxide
Габаритные размеры
Diameter: 12 mm (0.47 ")
Shaft lengths: 120, 225, 360 and 425 mm
(4.72, 8.86, 14.2 and 16.7 ")Рабочая температура
0 to 140 °C (32 to 284 °F)Рабочее давление
0.8 to 14 bar (11.6 to 203 psi) (absolute)Датчик температуры
NTC 30kСертификаты на взрывозащиту
With ATEX, IECEx, CSA C/US, NEPSI, Japan Ex and INMETRO approvals for use in
hazardous areas Zone 0, Zone 1 and Zone 2.Подключение
Inductive, contactless connection head with Memosens 2.0 technologyСтепень защиты
IP68Дополнительные сертификаты
Дополнительные сертификаты
Endress+Hauser Memosens CPS72E (техническое описание)
